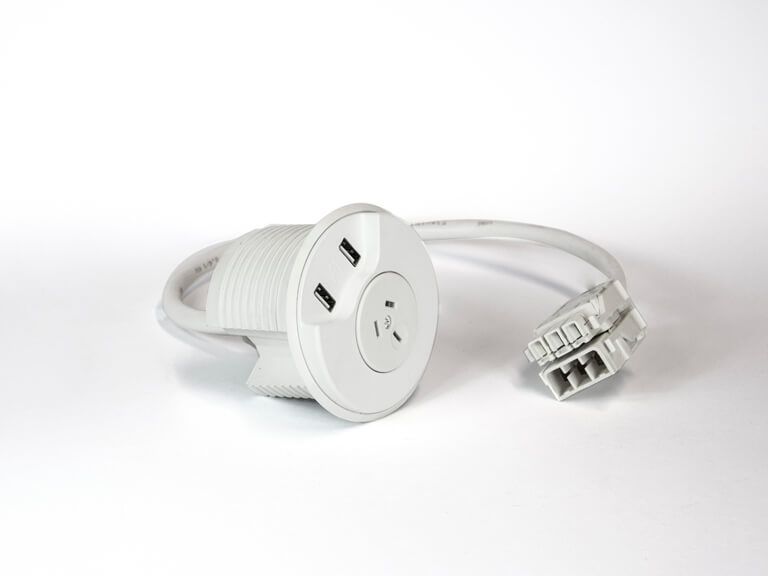

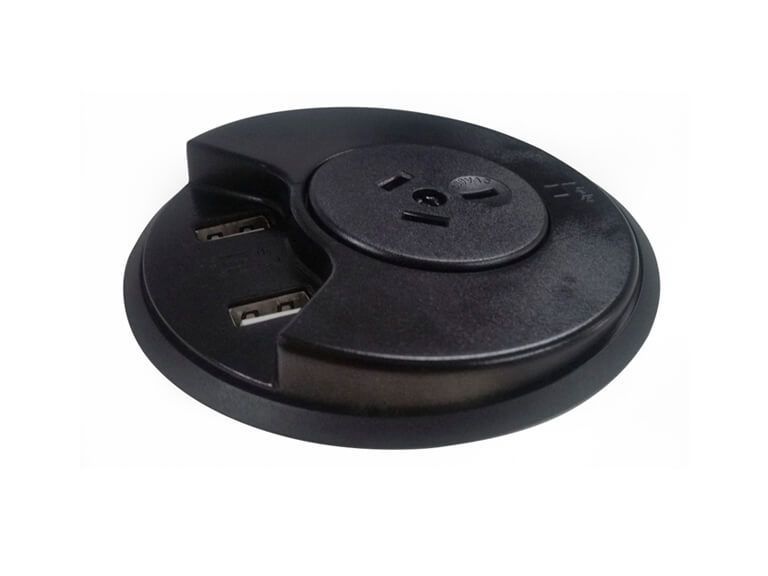

Porthole IV Desk Power Pack

Item Description

he Porthole IV power module has an auto-switched power socket and integral 4amp USB power supply, capable of charging all leading mobile phones and tablets.

The Porthole IV is currently under development to include a USB Type A and C fast charger and a power socket.


Features

  • Compact dimensions, ideal for space-saving installations.
  • Can fit a standard 80mm desk grommet
  • 2 x USB charging sockets with integrated power supply
  • Designed to share the power when two devices are connected
  • Fitted with 10amp auto-switched socket (also available with 15amp and round-pin earth)
  • Surround has been designed to deflect spillages
  • Designed to fit any material thickness between 12mm and 42mm
  • Power cables exit from the base of the unit
  • Can be supplied with soft wiring connector or flex and 3-pin plug
  • Cut-out: 80mm diameter



DOWNLOAD SPEC SHEET REQUEST A QUOTE

Colours:

• Colours: Black, white or grey

• Black modules are supplied with black cables. White and grey modules are supplied with white cables.


Outlets:

• Fitted with 10amp auto-switched socket but can be fitted with a 15amp and round-pin earth upon request

• Available with Australian or international sockets.


Leads:

• Can be supplied with soft wiring connector or flex and 3-pin plug

USB Charging:

• Input: 100-240V~ 50/60Hz 0.5A

• Output: 5Vdc 4A total (2 USB)

• Complies with standard AS/NZS 60950.1:2015

• 2 x USB charging sockets with integrated power supply.

• It is designed to share the power when two devices are connected

• Certificate of approval available on request


• Fitted with 10amp auto-switched socket (also available with 15amp and round-pin earth)

• Power cables exit from the base of the unit and can be supplied with a soft wiring connector or flex and 3-pin plug


Dimensions:

• Cut-out: 80mm diameter

• Top cover flange: 95mm diameter

• Height: 75mm

• Designed to fit any material thickness between 12mm and 42mm

• Easy to retrofit: incorporates an under-desk, hand tightened barrel nut to fix unit in place.

DOWNLOAD SPEC SHEET
