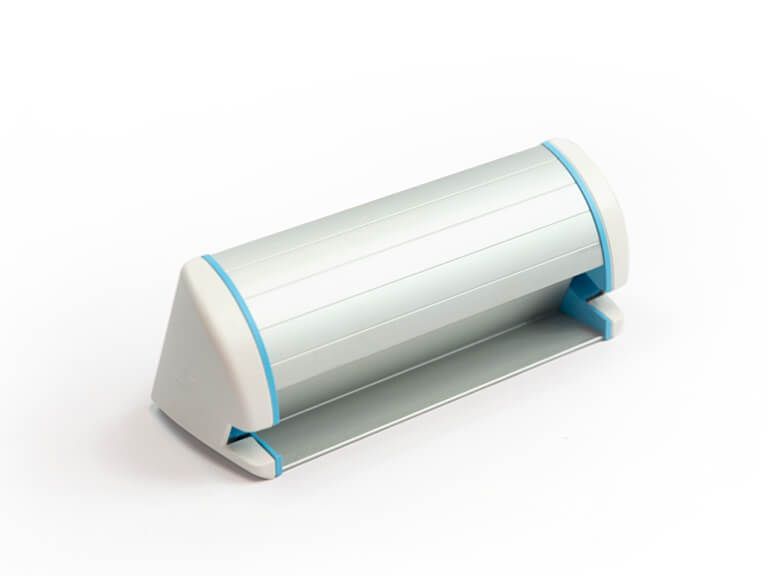

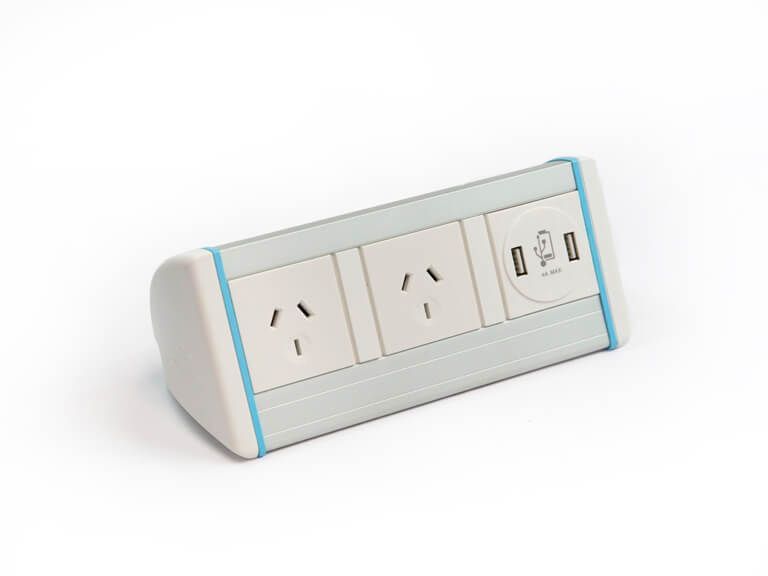

Harmony II Power Pack

Item Description

he Harmony II on-desk module has had a facelift to improve its appearance. A new double-end cap now means that there are no visible screws, creating a flawless look.

The Harmony II can be fitted to the edge of the desk with C-clamps or adhesive kits, making it functional yet non-intrusive to the working desk.


Features

  • Anodised aluminium extruded body
  • Completely customisable to each user’s specifications, with a wide range of data and AV components available
  • Configured with segregated power & data/AV choices
  • Inclusion of rear access data sockets
  • Match the colour to your office’s personality. See the ‘Options’ tab for the variety of colours available.
  • Supplied with a 1000mm soft-wired male connector. However, it can be wired with a 10amp flex lead and 3-pin plug upon request.




DOWNLOAD SPEC SHEET REQUEST A QUOTE

Colours

• Fascias/end caps available in black, grey or white

• Inner end caps available in black, white, grey, lime green, orange or cyan.


Outlets

• 10amp auto-switched flush mount sockets

• Range of International sockets available by request


Outlets available:

• HDMI

• USB 3.0

• Cat6 RJ45

• VGA

• RCA & Audio

• USB Charging


Leads

• Supplied with a 1000mm male soft wiring connector

• Can be wired with a 10amp flex lead and 3-pin plug upon request

• Thermal overload is needed when three or more sockets are used


Fixings

• Fixing via standard C-clamps or adhesive fixing kit

• Anodised, aluminium extruded body

• Assembled in Australia


Dimensions:

• Variable (l) x 80mm(W) x 80mm(h)

• Please speak to our sales team for the length as they vary with each configurations


Power/Sockets:

• Segregated power & data/AV options to fully customise your Harmony II.

• Rear access data sockets

• Accepts Category 6 data


Leads

• Supplied with a 1000mm male soft-wired connector however can be wired with a 10amp flex lead and 3-pin plug upon request.

• If 3 or more sockets are required, a thermal overload must be included

• White and grey modules are supplied with white cables and black modules are supplied with black cables.


Compliance:

• Complies with the requirements of AS/NZS3000 & AS/NZ61535:2011

DOWNLOAD SPEC SHEET
