Slide in-Desk Module

Slide In-Desk Module

Item Description

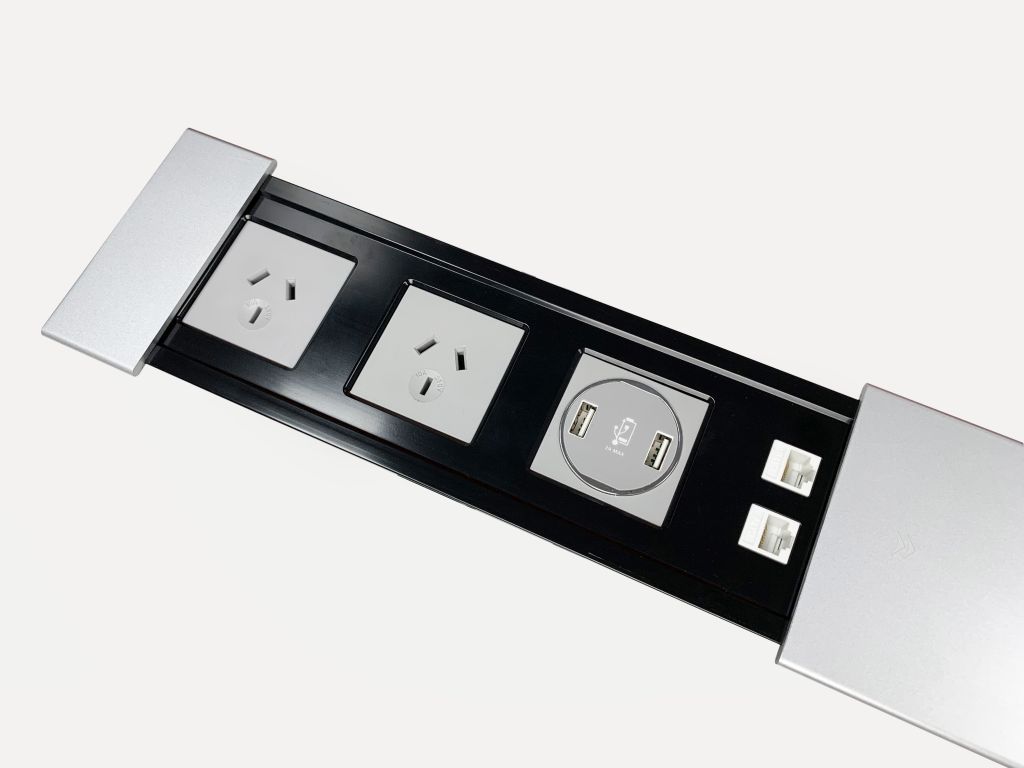

The SLIDE in-desk power module has a sleek aesthetic and a unique sliding lid, allowing all outlets to be covered when not in use and accessible when the lid is open.

Now available with wireless charging!


Features

  • Smooth sliding lid operation
  • Quick fit installation, with two ratchet clamps to lock the unit in the work surface
  • Can be horizontally or vertically mounted
  • Typical configuration consists of 2 x power, dual USB charger and provision for 2 data.
  • Available with 20amp flex and in/out couplers or 10amp flex and 3-pin plug
  • Slide colour: Silver



DOWNLOAD SPEC SHEET REQUEST A QUOTE

• The slide can come with a wireless charger or without


• Speak to our team if you require a specific configuration of power, data and/or AV


AV Modules:

The Slide has provision for two AV modules, with a choice of:

• HDMI

• USB 3.0

• Cat6 RJ45

• 3.5mm Audio


Sockets Available:

• 10a Auto Switched Power socket (max of 3 with no USB charger)

• Dual USB-A charger (max of 1)

• Dual USB-A & C Fast charger 30w


• Available with 20amp flex and in/out couplers or 10amp flex and 3-pin plug

 Available with 20amp flex and in/out couplers or 10amp flex and 3-pin plug

• Two ratchet clamps to lock the unit in the work surface

• Can be horizontally or vertically mounted

• Certificates of approval for the wireless charger and dual USB charger are available upon request


Standard slide dimensions:

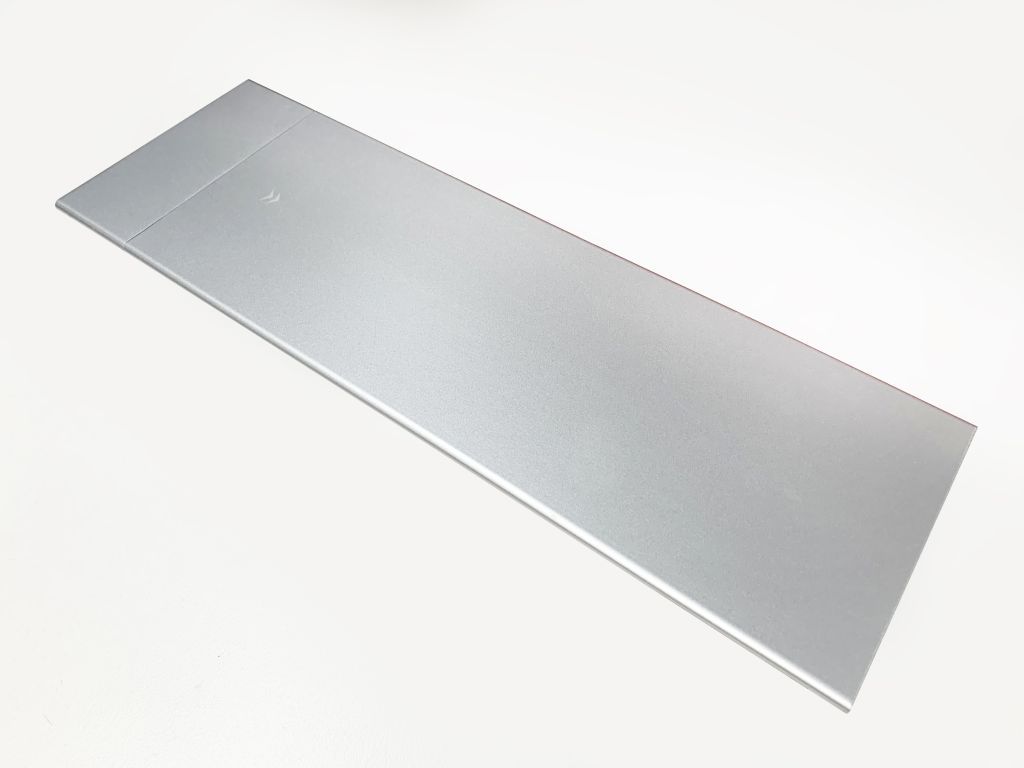

• When closed: 312mm x 100mm x 53mm from underside of lid

• When open:  547mm x 100mm x 53mm from underside of lid

• Cut out: 299mm x 70mm

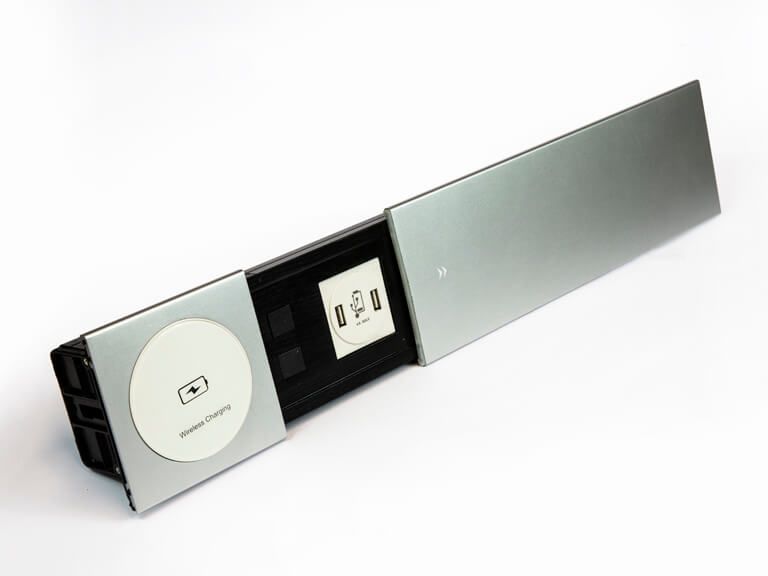

Slide with Wireless Charger dimensions:

• When closed: 402mm x 100mm x 53mm from underside of lid

• When open: 653mm x 100mm x 53mm from underside of lid

• Cut out: 389mm x 70mm

DOWNLOAD SPEC SHEET
