Freedom power pack

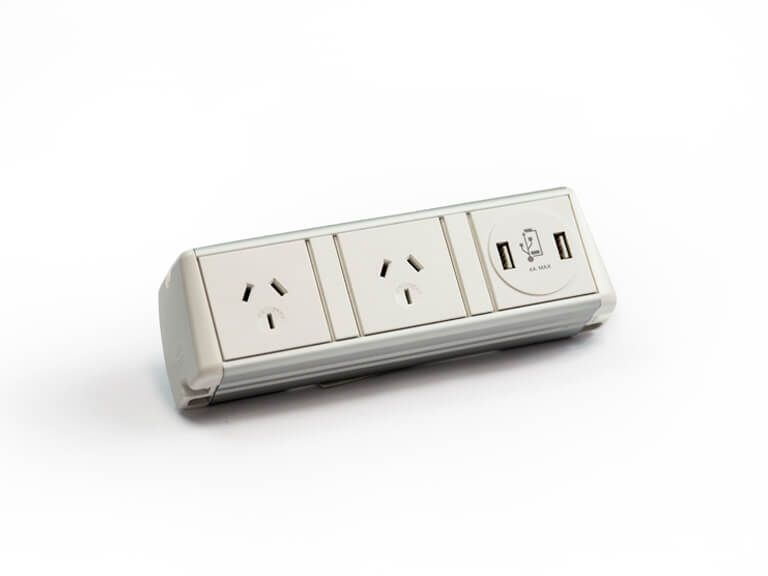

Freedom Power Pack

Item Description

The Freedom power module offers the versatility of different mounting options: besides on the desk, bracketing is available for under desk, vertical and panel mounting.

The Freedom is configurable with segregated power & data/AV choices to suit different workstation requirements and can be fitted to the edge of the desk with C-clamps or adhesive kits, making it functional yet non-intrusive to the working desk.

Features

Anodised aluminium extruded body
Customisable to your needs – go small or go big
Fully segregated power & data/AV
Supplied with a 1000mm male soft wiring connector. Can be wired with a 10amp flex lead and 3-pin plug upon request.
Choice of power & data connectors to most specifications
Accepts enhanced Category 6 RJ45 data outlets

DOWNLOAD SPEC SHEET REQUEST A QUOTE

Colours:

• Fascias/end caps available in black, grey or white

• Inner end caps available in black, white, grey, lime green, orange or cyan.

• White and grey modules are supplied with white cables and black modules are supplied with black cables.

Outlets:

• 10amp auto-switched flush mount sockets

• Range of International outlets are available by request

Outlets available:

• HDMI

• USB 3.0

• Cat6 RJ45

• VGA

• RCA & Audio

• USB Charging Leads

Leads:

• Supplied with a 1000mm male soft wiring connector

• Can be wired with a 10amp flex lead and 3-pin plug upon request.

Fixings:

• C-clamps or

• Adhesive Kits

• L-Fixing

Assembled in Australia and is fully customisable.

Material:

• Anodised aluminium extruded body

Leads:

• Supplied with a 1000mm male soft wiring connector

• Can be wired with a 10amp flex lead and 3-pin plug upon request.

• White and grey modules are supplied with white cables, and black modules are supplied with black cables.

Sockets:

• Choice of power & data/AV connectors to most specifications

• Accept Category 6 RJ45

Dimensions:

• With standard desk mount brackets: 75mm deep x 75mm high,

• Please speak to our sales team for lengths, as they vary depending on the configuration

Fixing:

• We recommend using two C-clamps for the Freedom module, which fits a desk thickness of 20mm-32mm, or adhesive kits.

• We recommend using one adhesive kit for the Freedom module. The adhesive strips have been rigorously tested to ensure that they work on a variety of surfaces. Please check with the furniture provider as to the suitability of the surface finish.

Compliance:

• Fully segregated power & data/AV

• Complies with the requirements Of AS/NZS3000 & AS/NZ61535:2011
